PRODUCT

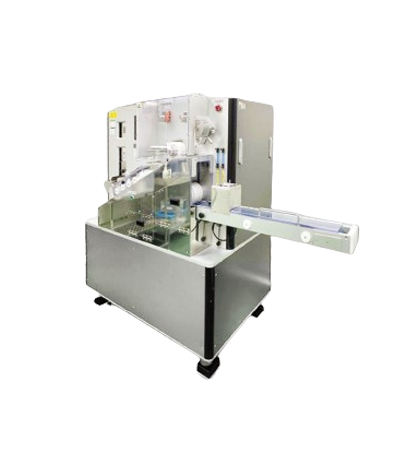

MULTI-80

Tablet Printer

Model Multi-80

Size (W)ｘ(D)ｘ(H)
2,400 x 1,000 x 1,400
Electricity
220V 60Hz three-phase circuit
Standard processing power


Default 6 columns
Tablet
- Up to 300,000 tablets printing/ per hour
Machine weight
Less than 1,000kg

Characteristics (Up to 300,000 per hour based on 8 pi refining)

  • There are few print defects in the print work.
  • The printed top surface of the tablet is located on the top surface of the drying conveyor belt, so that sufficient drying and screening are possible.
    (Existing Refined Printing Machine mixes tablets after printing refineries, resulting in poor printing)
  • All change part accessories are quantified, so even beginners can use them
  • For the safety of the operator, if the operator's hand goes too deep into the machine when removing the residual ink, the safety bar operates and the machine stops.
  • All operations can be easily manipulated by the touch screen.
  • Hot air and cold air dryers(halogen lighting system) are attached to help quickly dry the ink when printing Sugar-coated tablet.
  • Refined, softcapsules, heartcapsules, and all other products are printable
  • Printing defects were greatly reduced by processing a printing roller by a laser method rather than a conventional (corrosion) method.

    • Corrosion processing

    • Laser processing
